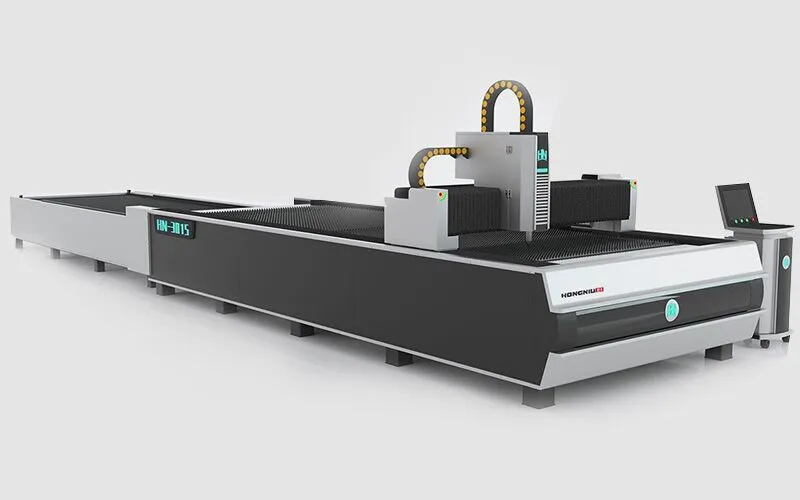

Exchange Platform Laser Cutting Machine
Machine Description
It adopt parallel switching platform and bilateral drive matching sprocket chain.It has the characteristics of stability, good rigidity and high speed. High speed parallel exchange platform design, double worktable exchange at the same time, stable and reliable transmission mode, shorter exchange time, better frequency converter. The movement speed is 140m/min, automatic tracking, automatic edge searching and automatic nesting. The efficiency is doubled and the cutting surface is smooth and beautiful.
Product Features
The beam adopts cast aluminum beam, which has the characteristics of high speed, accuracy, high efficiency and high efficiency.

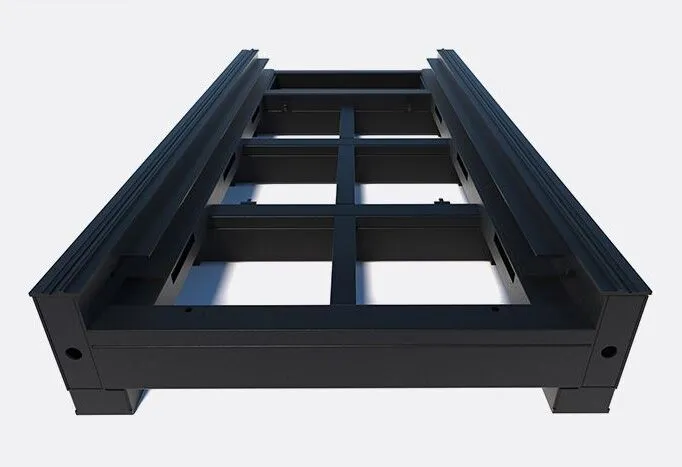

The flue is distributed on both sides of the bed, with segmented dust removal, better smoking effect and better environmental protection requirements.
The beam adopts cast aluminum beam, which has the characteristics of high speed, accuracy, high efficiency and high efficiency.
Aluminum alloy has the metal characteristics of light weight and strong rigidity, which is conducive to the high-speed movement in the process of processing. High flexibility is conducive to high-speed cutting of various graphics on the basis of high-precision.
Technical Parameters
|
Model
|
3015
|
4020
|
6025
|
8025
|
|---|---|---|---|---|
|
Cutting Range
|
3000 x 1500 mm
|
4000 x 2000 mm
|
6000 x 2500 mm
|
8000 x 2500 mm
|
|
Laser Power
|
1000 - 12000 w
|
|||
|
Repeat Positioning Accuracy
|
0.02 mm
|
|||
|
Max Moving Speed
|
140 m / min
|
|||
Cutting Samples
It can be used for 0.5 – 25mm carbon steel plate, 0.5-16mm stainless steel plate,galvanized sheet, cold rolled sheet and electrolytic plate, 05-16mm aluminum alloy plate, 0.5-10mm brass and red copper and other metal materials.
