Sigle Platform Laser Cutting Machine
Machine Description
The Hongniu Laser 3015E is a cost-effective, single platform fiber laser cutting machine with a moderate footprint, suitable for cutting large volumes of sheet metal. It is designed to efficiently cut through a range of materials, including stainless steel, aluminum, brass, and copper, with a high degree of precision and accuracy. With its fast cutting speeds and low maintenance requirements, the 3015E is an ideal choice for customers looking to optimize their production processes and increase their output of high-volume products.
Product Features
Precision Reform and Efficient Transmission
Precision reform and efficient transmission are key to achieving excellent performance, stability, and precision. By using high-quality materials, designing for precision, implementing proper maintenance, and controlling the operating environment, the machine can achieve greatly improved stability and guaranteed performance. Efficient transmission is also essential, and selecting the right transmission components and ensuring proper maintenance can improve power transmission while reducing friction. Overall, following these measures can help prolong the machine’s service life and make it a valuable asset in any manufacturing environment.

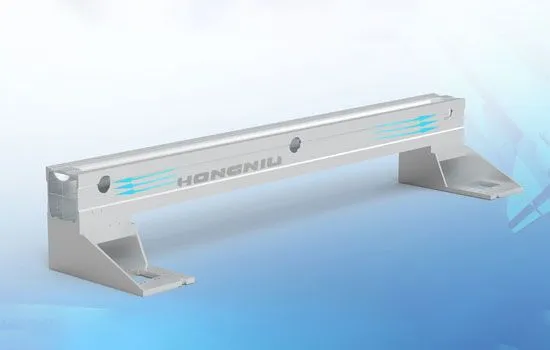

The Third Generation Aviation Aluminum Beam
Crafted to meet aerospace standards, this aviation aluminum crossbeam is formed using 4300 tons press extrusion molding and undergoes aging treatment to achieve a strength comparable to the strongest gantries, rated at T6. Its lightweight yet durable structure, anti-corrosion and anti-oxidation properties, and low density make it ideal for various applications where strength, longevity, and weight reduction are essential. Moreover, it enhances processing speed, making it a top choice for manufacturers seeking to optimize their operations.
Technical Parameters
|
Model
|
3015H/4020H/6020H/6025H/8025H/12025H
|
|---|---|
|
Processing Format
|
3000mm x 1500 mm
|
|
Laser Power
|
1000w/2000w/3000w/6000w
|
|
Maximum Positioning Speed
|
80 m / min
|
|
Positioning Accuracy
|
0.03 mm / m
|
|
Repeatability
|
0.02 mm / m
|
|
Power supply rated voltage and frequency
|
220V 1P 50HZ /60HZ
|
Working Video
Upgrade your metal cutting capabilities with our Open Type Single Platform metal sheet Laser Cutting Machine, designed to handle 1000w-3000w laser cutting needs. Experience precision and efficiency like never before with our cutting-edge technology.
- The cutting thickness is related to the laser power.
- Carbon steel plate：0.5-16mm
- Stainless steel plate：0.5-10mm
- Aluminum plate：0.5-8mm
